SMAR
Smart Factory Iplementation & Logistics Automation Solution
Smart Factory Iplementation &
Logistics Automation Solution







SMAR - Product Lineup
SMAR - Product Lineup
Built on a standardized lower mobility platform, our upper service modules are tailored for a wide range of applications
Built on a standardized lower mobility platform,
our upper service modules are tailored for a wide range of applications
Built on a standardized lower mobility platform,
our upper service modules are tailored for
a wide range of applications
CMR
Conveyor type Mobile Robot
SMR
Shelf type Mobile Robot
RMR
Roll tainer type Mobile Robot
LMR
Lift conveyor type Mobile Robot
GMR
Grab type Mobile Robot
CMR
Conveyor type Mobile Robot
SMR
Shelf type Mobile Robot
RMR
Roll tainer type Mobile Robot
LMR
Lift conveyor type Mobile Robot
GMR
Grab type Mobile Robot
Flexible Robotics Platform for Industrial Automation
Polaris3D SMAR consists of a Mobility Module and a Service Module,
offering customizable robots tailored to meet the specific needs of industrial environments
Polaris3D SMAR consists of a Mobility Module
and a Service Module,offering customizable robots
tailored to meet the specific needs of industrial environments
Mobility Module
A compact mobility module engineered to overcome spatial constraints in narrow environments and achieved more stable material transport

Service Module
Mobility Module

Safety Features
Safety Relay
AMR Control System
Minimum operating width 70 cm
ISO-Certified safety bumper
STO Motor Drive(Safe tonque off)
Precision docking capability
Mobility Module
Dimensions
610*570*310mm
Payload
80kg
Sensor
Equipped with PL-B grade industrial LiDAR(both front and rear-mounted)
Battery
(Selectable)
Lithium Iron Phosphate LFP Battery (7 to 13 hours of operational time
(Removable modular design with a built-in portable handle and locking mechanism)
Lithium-ion battery option available (IEC certified, fully rechargeable within 1.5 hours)
Max Speed
1.2m/s
Chassis Material
EGI(Electro-galvanized steel sheet)

Mobility Module
A compact mobility module engineered to overcome spatial constraints in narrow environments and achieved more stable material transport

Service Module

Mobility Module
Safety Features
Safety Relay
AMR Control System
Minimum operating width 70 cm
ISO-Certified safety bumper
STO Motor Drive(Safe tonque off)
Precision docking capability
Mobility Module
Dimensions
610*570*310mm
Payload
80kg
Sensor
Equipped with PL-B grade industrial LiDAR(both front and rear-mounted)
Battery
(Selectable)
Lithium Iron Phosphate LFP Battery (7 to 13 hours of operational time
(Removable modular design with a built-in portable handle and locking mechanism)
Lithium-ion battery option available (IEC certified, fully rechargeable within 1.5 hours)
Max Speed
1.2m/s
Chassis Material
EGI(Electro-galvanized steel sheet)
Mobility Module
A compact mobility module engineered to overcome spatial constraints in narrow environments and achieved more stable material transport

Service
Module
Mobility
Module

Safety Features
Safety Relay
AMR Control System
Minimum operating width 70 cm
ISO-Certified safety bumper
STO Motor Drive(Safe tonque off)
Precision docking capability
Mobility Module
Dimensions
610*570*310mm
Payload
80kg
Sensor
Equipped with PL-B grade industrial LiDAR(both front and rear-mounted)
Battery
(Selectable)
Lithium Iron Phosphate LFP Battery (7 to 13 hours of operational time
(Removable modular design with a built-in portable handle and locking mechanism)
Lithium-ion battery option available (IEC certified, fully rechargeable within 1.5 hours)
Max Speed
1.2m/s
Chassis Material
EGI(Electro-galvanized steel sheet)

Service Module
Optimized for smart factory environments offering flexible, customizable service modules
Service
Module
Mobility
Module


Service Module
(Conveyor Part)
Service Module
(Shelf Part)
External Interface Support
We provide a wide range of software and hardware solutions essential for manufacturing automation
External Power
Output-24V/10A
External Communication
Space-Ethernet(RJ45)
Emergency
Stop Button
Three-Color Signal Tower
10inch tablet
rgdb sensor
Service Module
Optimized for smart factory environments offering flexible, customizable service modules
Service
Module
Mobility
Module


Service Module
(Conveyor Part)
Service Module
(Shelf Part)
External Interface Support
We provide a wide range of software and hardware solutions essential for manufacturing automation
External Power
Output-24V/10A
External Communication
Space-Ethernet(RJ45)
Emergency
Stop Button
Three-Color Signal Tower
10inch tablet
rgdb sensor
Service Module
Optimized for smart factory environments offering flexible, customizable service modules
Service
Module
Mobility
Module


Service Module
(Conveyor Part)
Service Module
(Shelf Part)
External Interface Support
We provide a wide range of software and hardware solutions essential for manufacturing automation
External Power
Output-24V/10A
External Communication
Space-Ethernet(RJ45)
Emergency
Stop Button
Three-Color Signal Tower
10inch tablet
rgdb sensor
Fully Autonomous Smart Factory Solution
A variety of accessories are available to enable the transition to a fully autonomous smart factory,
with seamless control and monitoring through the integrated system, Nepler

Accessory
Smart Factory Transition Accessories

Platform
Robot control system, Nepler
Smart Factory Conversion Accessories
Smart factory conversion accessories that can be easily installed on existing equipment,
enabling seamless logistics automation with minimal modifications to production facilities.

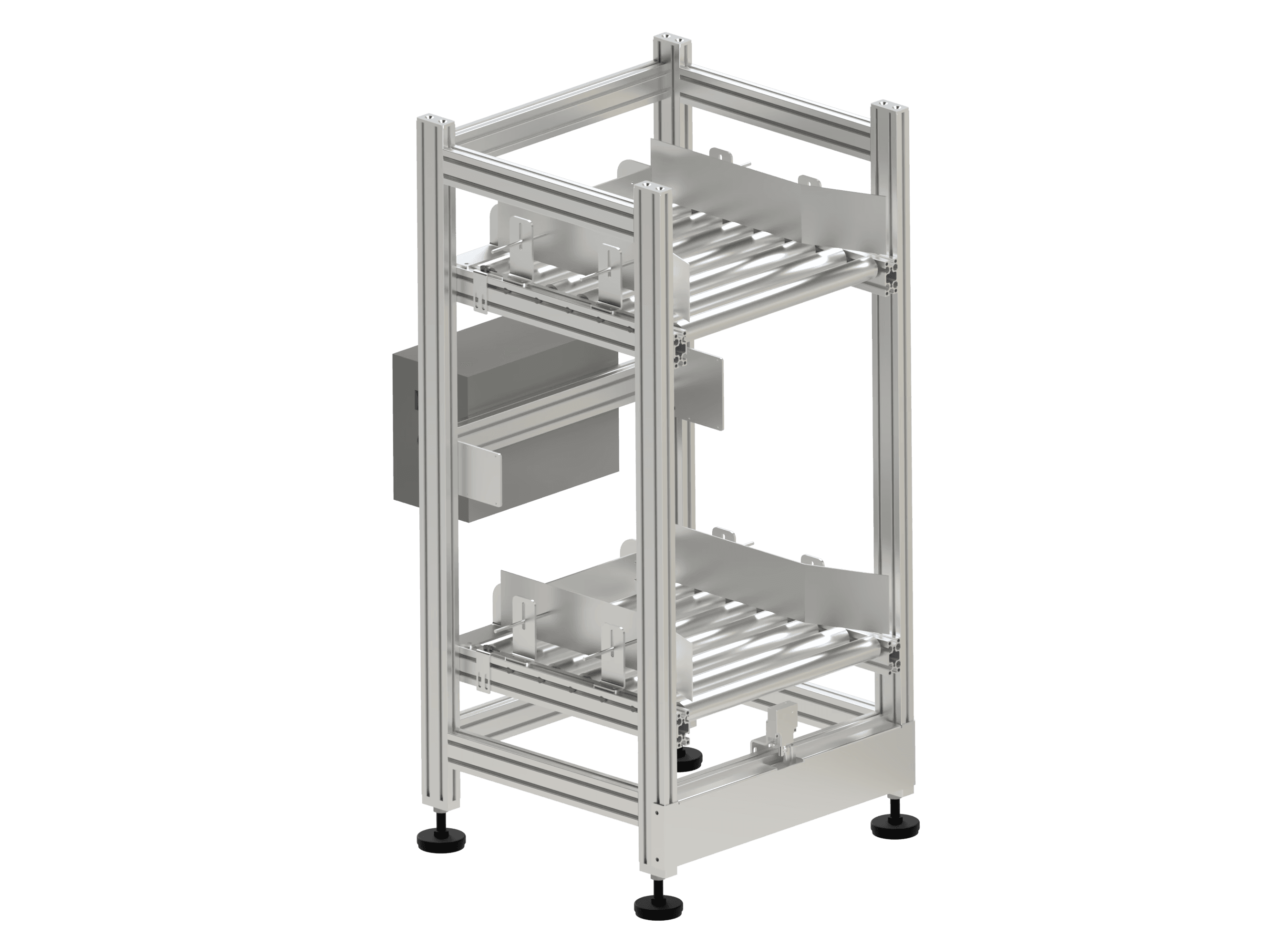

Simple Buffer
(Conveyor & Shelf Type)
Intermediate station for material buffering and auto in/out/(Shelf / Conveyor, Powered / Non-powered)
mimum size : 350*360*350
maximum size : 450*600*1000

PIO Sensor
Communication technology for integration and automation between equipment and robots.

Material Detection Module
Real-time detection of material loading status in equipment

DM Maker(Digital Matrix)
Position guidance for docking with logistics communication device

Charging Station
When battery level drops below 20%, the AMR automatically returns to the charging station for self-charging.(Charging from 20% to 80% takes about 2 hours)

Smart Loader (Feeder)
Fully automated transfer of magazines to equipment without human intervention
Fully Autonomous Smart Factory Solution
A variety of accessories are available to enable the transition to a fully autonomous smart factory,
with seamless control and monitoring through the integrated system, Nepler

Accessory
Smart Factory Transition Accessories

Platform
Robot control system, Nepler
Smart Factory Conversion Accessories
Smart factory conversion accessories that can be easily installed on existing equipment,
enabling seamless logistics automation with minimal modifications to production facilities.

Simple Buffer
(Conveyor & Shelf Type)
Intermediate station for material buffering and auto in/out/(Shelf / Conveyor, Powered / Non-powered)
mimum size : 350*360*350
maximum size : 450*600*1000

PIO Sensor
Communication technology for integration and automation between equipment and robots.

Material Detection Module
Real-time detection of material loading status in equipment

DM Maker(Digital Matrix)
Position guidance for docking with logistics communication device

Charging Station
When battery level drops below 20%, the AMR automatically returns to the charging station for self-charging.(Charging from 20% to 80% takes about 2 hours)

Smart Loader (Feeder)
Fully automated transfer of magazines to equipment without human intervention
Fully Autonomous Smart Factory Solution
A variety of accessories are available
to enable the transition to
a fully autonomous smart factory,
with seamless control and monitoring through the integrated system, Nepler

Accessory
Smart Factory Transition Accessories

Platform
Robot control system, Nepler
Smart Factory
Conversion Accessories
Smart factory conversion accessories that can be easily installed on existing equipment,
enabling seamless logistics automation with minimal modifications to production facilities.
Simple Buffer
(Conveyor & Shelf Type)Intermediate station for material buffering and auto in/out/(Shelf / Conveyor, Powered / Non-powered)
mimum size : 350*360*350
maximum size : 450*600*1000
PIO Sensor
Communication technology for integration and automation between equipment and robots.
Material Detection Module
Real-time detection of material loading status in equipment
DM Maker(Digital Matrix)
Position guidance for docking with logistics communication device
Charging Station
When battery level drops below 20%, the AMR automatically returns to the charging station for self-charging.(Charging from 20% to 80% takes about 2 hours)
Smart Loader (Feeder)
Fully automated transfer of magazines to equipment without human intervention
Global Experience
Polaris3D Robot are deployed in 11 countries globally
Polaris3D Robot are deployed in 11 countries globally

Canada
Turkiye
India
Egypt
Hungry
Slavakia
Indonesia
Korea
Vietnam
Brasil
Mexico
USA

Canada
Turkiye
India
Egypt
Hungry
Slavakia
Indonesia
Korea
Vietnam
Brasil
Mexico
USA

Canada
Turkiye
India
Egypt
Hungry
Slavakia
Indonesia
Korea
Vietnam
Brasil
Mexico
USA
Safety Certification
ISO 9001
Quality Management
CertificationIEC 62619
Industrial Lithium Battery
Safety Certification
EMS Immunity Certification
for Industrial Environments
UN38.3 Certification
for Lithium Batteries
Certified to Safety Standards
of Korea’s Leading Company
Safety Certification
ISO 9001
Quality Management
CertificationIEC 62619
Industrial Lithium Battery
Safety Certification
EMS Immunity Certification
for Industrial Environments
UN38.3 Certification
for Lithium Batteries
Certified to Safety Standards
of Korea’s Leading Company
Safety Certification
ISO 9001
Quality Management
CertificationIEC 62619
Industrial Lithium Battery
Safety Certification
EMS Immunity Certification
for Industrial Environments
UN38.3 Certification
for Lithium Batteries
Certified to Safety Standards
of Korea’s Leading Company
SMAR SPECIFICATIONS
Dimension
Payload
Maximum Speed
Battery
LiDAR
Tray Size

AMR
Mobility Module
610*570*310mm
80kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR

SMR
Shelf type Mobile Robot
640*570*1260mm
20kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Tray Size
550*500mm(W*D)

CMR
Conveyor type Mobile Robot
640*600*1260mm
25kg / conveyor
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Conveyor Size
600*480mm(W*D)

LMR
Lift-comveyor type Mobile Robot
670*620*1820mm
25kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Carrying Box Size
420*350mm*580(W*D*H)

RMR
Roll Tainer type Mobile Robot
810*630*1500mm
60kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Inner Space Size
760*500*900mm
SMAR SPECIFICATIONS
Dimension
Payload
Maximum Speed
Battery
LiDAR
Tray Size
AMR
Mobility Module
610*570*310mm
80kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
SMR
Shelf type Mobile Robot
640*570*1260mm
20kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Tray Size
550*500mm(W*D)
CMR
Conveyor type Mobile Robot
640*600*1260mm
30kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Conveyor Size
600*480mm(W*D)
LMR
Lift-comveyor type Mobile Robot
670*620*1820mm
20kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Carrying Box Size
420*350mm*580(W*D*H)
RMR
Roll Tainer type Mobile Robot
810*630*1500mm
50kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Inner Space Size
760*500*900mm
SMAR SPECIFICATIONS
Dimension
Payload
Maximum
Speed
Battery
Operating
time
LiDAR
Tray Size
AMR
Mobility Module
610*570*310mm
80kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
SMR
Shelf type Mobile Robot
640*570*1260mm
20kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Tray Size
550*500mm(W*D)
CMR
Conveyor type Mobile Robot
640*600*1260mm
30kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Conveyor Size
600*480mm(W*D)
LMR
Lift-comveyor type Mobile Robot
670*620*1820mm
20kg / tray
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Carrying Box Size
420*350mm*580(W*D*H)
RMR
Roll Tainer type Mobile Robot
810*630*1500mm
50kg
1.2m/s
LFP Battery,
18Ah or 24Ah
PL-B LiDAR
Inner Space Size
760*500*900mm
Tel.
+82 054-275-0223
Fax.
+82 054-275-0224
Mail.
help@polaris3d.co
Headquarter
3~5F Firsthill Bldg, 18, Sicheong-ro, Nam-gu, Pohang-si, Gyeongsangbuk-do, Republic of Korea(37684)
Seoul branch
74, Cheongpa-ro, Yongsan-gu, Seoul, Republic of Korea
Factory
17-10, Secheon-ro 7-gil, Dasa-eup, Dalseong-gun, Daegu, Republic of Korea
Tel.
+82 054-275-0223
Fax.
+82 054-275-0224
Mail.
help@polaris3d.co
Headquarter
3~5F Firsthill Bldg, 18, Sicheong-ro, Nam-gu, Pohang-si, Gyeongsangbuk-do, Republic of Korea(37684)
Seoul branch
74, Cheongpa-ro, Yongsan-gu, Seoul, Republic of Korea
Factory
17-10, Secheon-ro 7-gil, Dasa-eup, Dalseong-gun, Daegu, Republic of Korea
